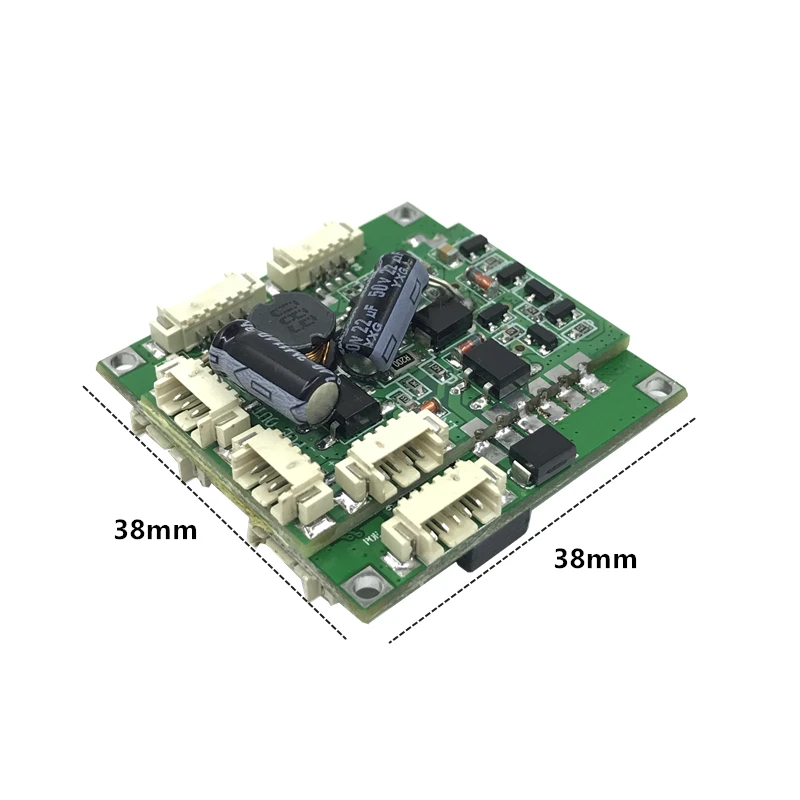

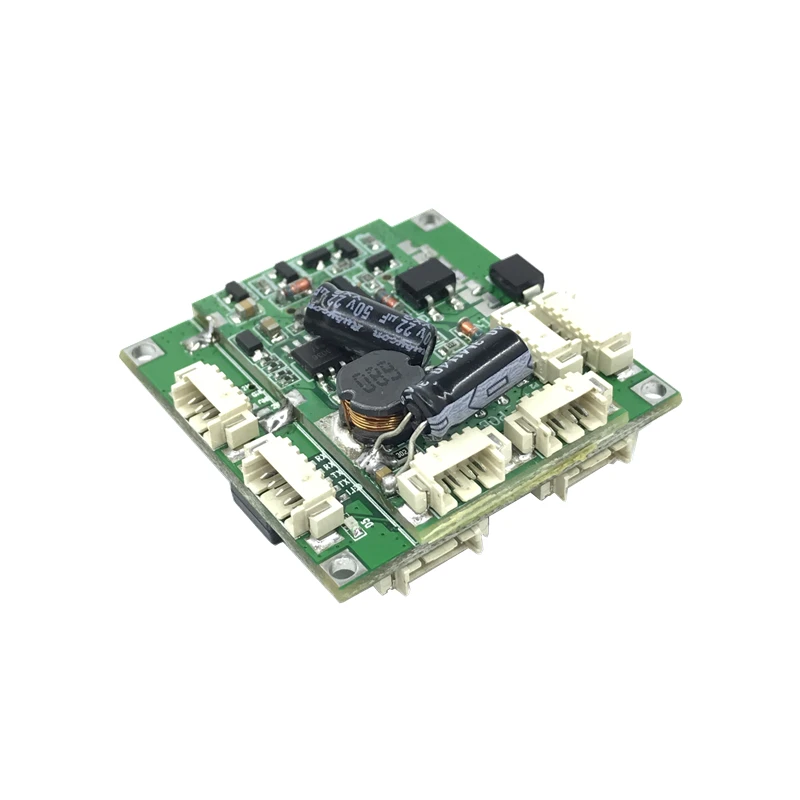

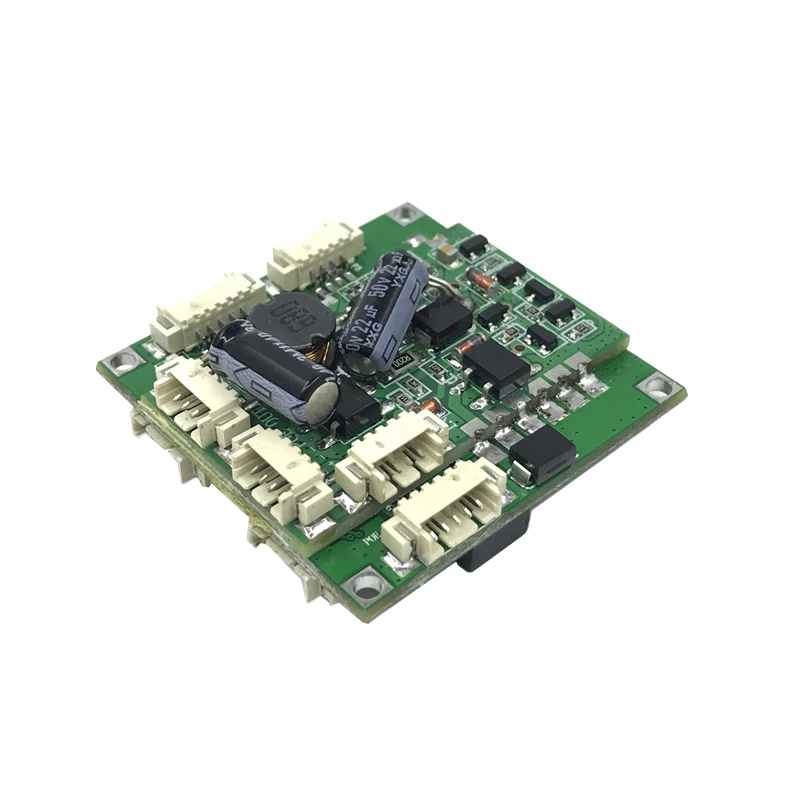

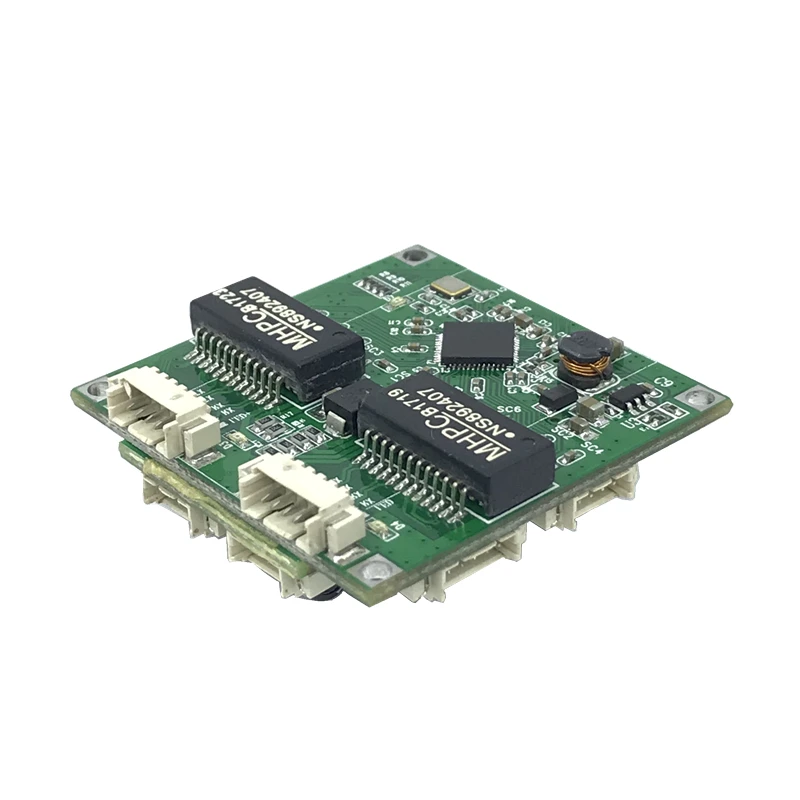

Buck POE module Switch board 802.3af/AT port power supply 30w for ip cameras nvr ip phone 4 poe switch PD separation buck 12v

USD 4.94USD 5.88

Buck POE module Switch board 802.3af/AT port power supply 30w for ip cameras nvr ip phone 4 poe switch PD separation buck 12v

Description

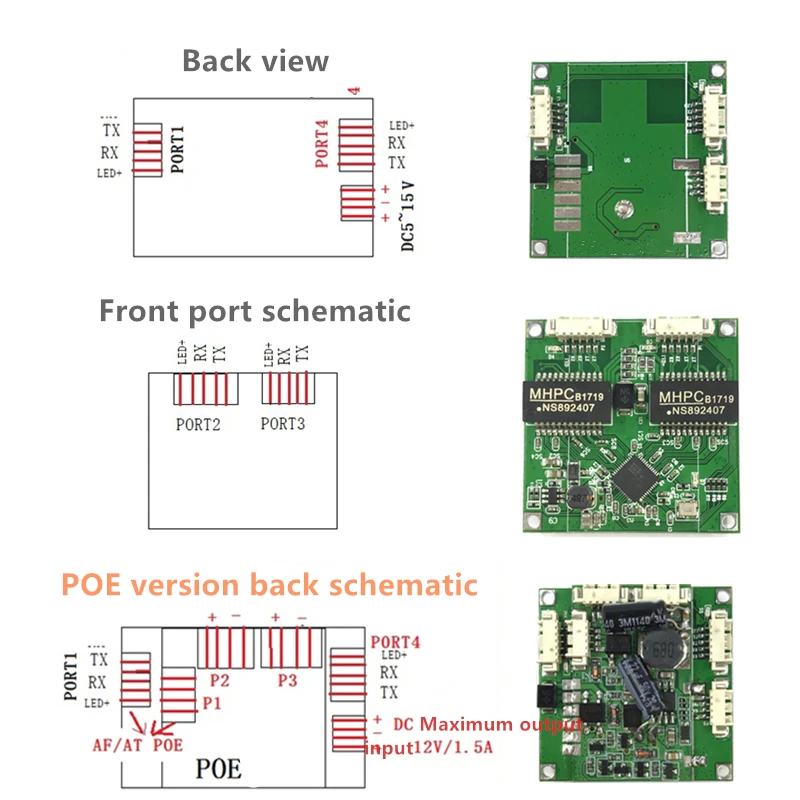

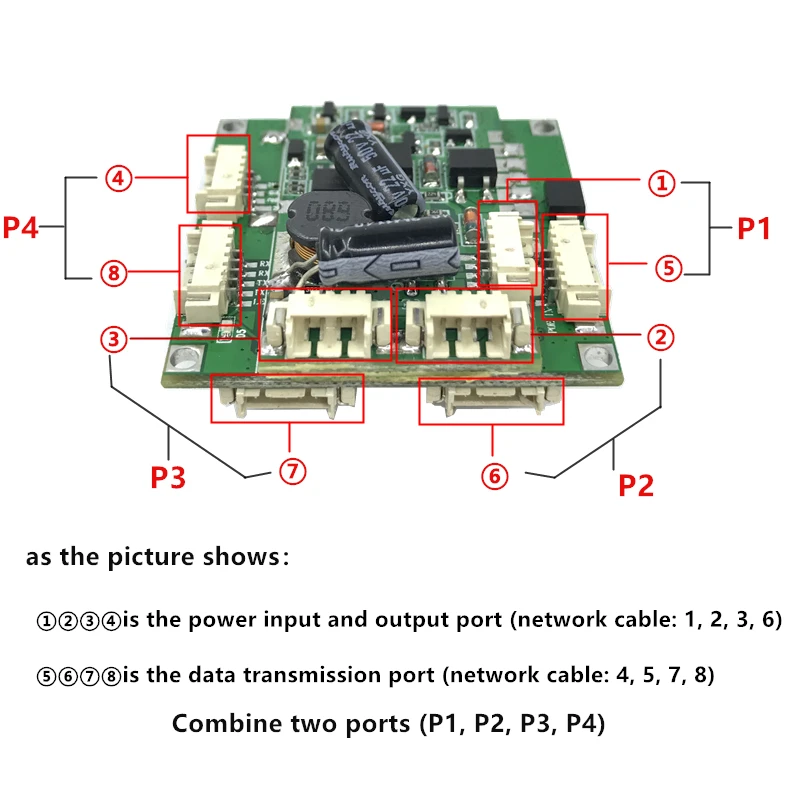

Combine two ports (P1, P2, P3, P4) P1:The P1 combination is a standard POE (supporting 802.3AT.802.3AF). For example, the P11 port input is 48v1.5A, and theport input data, then the P2 combined output is 48v0.62A30W, and the P3 output is 48v0.62A30W;Theport output input of the P4 combination is 12V,port data exchange. P2, P3: P2, P3is a non-standard POE belongs to the mandatory power port combination, (compatible: 802.3AF.802.3AT),P2, P3 input and output support 15v-60v maximum power 30W,port input voltageports are charged at the same time, will not affect P1 combinationport. for example: P2's 2-port input is non-standard 48v1.5ASPOE,port exchange data, then, P3'sport output is 48v0.62A30W,

exchange data; P4 combined port output input is 12V, 8-port data exchange.

P4:The P4 combinedport output inputs are all 12V (maximum 12V1.5A),port data exchange.

port POE 10/100 mbps rj45 poe switch 802.3af port power ip cameras nvr ip phone wifi access point

 4port poe switch connections: 4 poe ports connected to poe ipc / ip phone/wifi ap/cpe/wifi repeater etc 1 uplink connected to the router / switch / NVR single poe port output max 30w power supply 48v1.5a poe budget 30w POE distance 100 meters (by high quality cat5 / 5e / 6/7 ethernet cables)

Specification

Function : POE

Function : Stackable

Model Number : ANDDEAR-POE3

Communication Mode : Full-Duplex & Half-Duplex

Switch Capacity : 5

Transmission Rate : 10/100Mbps

Certification : yes

Package : Yes

Number of Interfaces : 7

Switch Type : Fast Switch

Brand Name : ANDDEAR

Package : Yes

Products Status : Stock

Switch Type : Ethernet

+
