The battery pack can be customized according to customer requirements, please contact the store customer service.

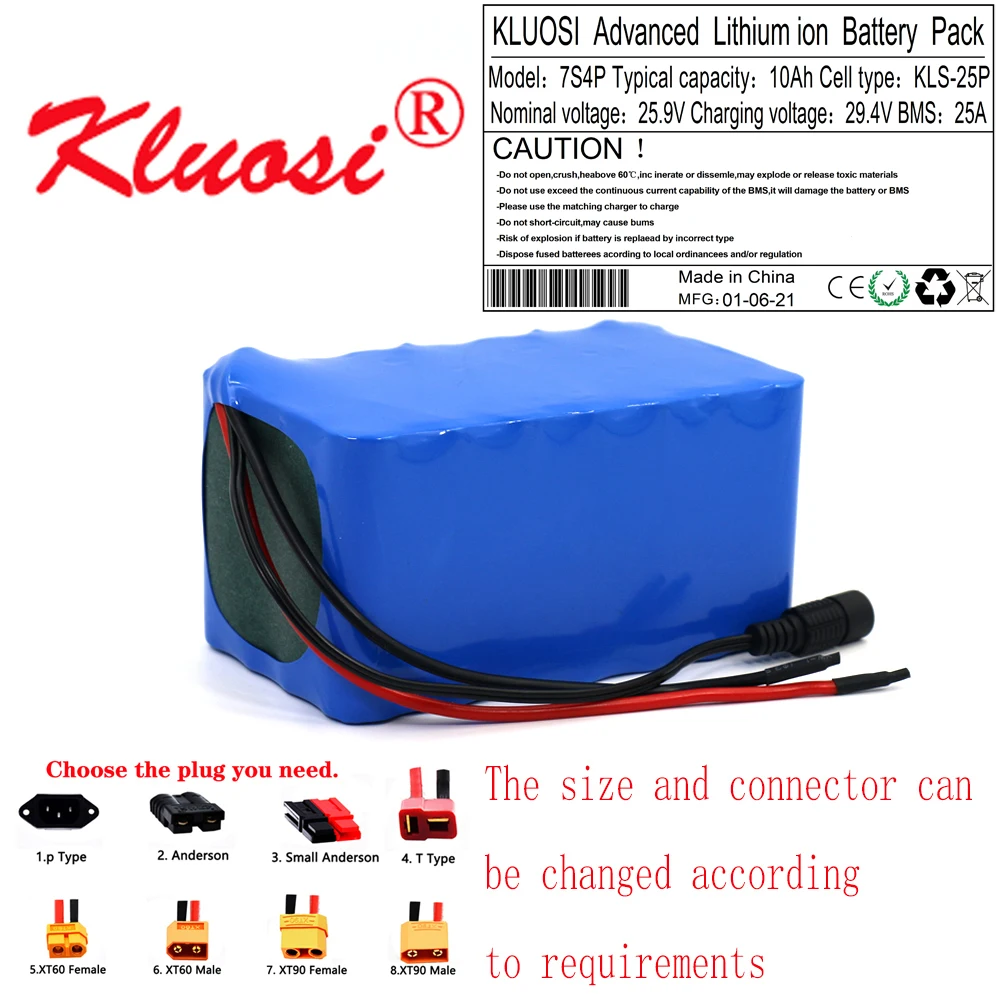

Cell type: KLS-25P(2.5Ah)
Cell count: 28 pieces(7S4P)
Nominal voltage: 25.2V
Charge voltage: 29.4V
Typical capacity: 10Ah/252Wh
Minimum capacity: 9Ah/226Wh
Rated power: 500Watt
BMS rated current: 25A discharge and 5A charge
BMS function:Overcharge, overdischarge, overcurrent, short circuit protection.
Connector: Red and black wire for discharge and DC5521 for charge
Package: heat shrinkable PVC, random color
Output voltage range: 19.6V-29.4V
Discharge cut-off voltage: 19.6V
Charge cut-off voltage: 29.4V
Charge method: CC-CV
Max. Charge current: 5A
Charge temperature: 0-45 ° C
Discharge temperature: -10-60 ℃
Storage temperature: -20-45 ° C (3 months)
Cycle life: 80% DOD after 500 cycles
Size: 130* 85 * 68 mm(±3mm)
- Period: 1year
- Coverage: Cells, other part are not covered by the warranty.
- Ingress of water, disassembly, modification, No use Match charger,Short circuit, failure due to personal reasons, etc., are not covered by the warranty.
- Treatment method: Send the replacement part to the buyer for replacement,Or communicate the appropriate solution with the seller.
Suitable for less than 500W all 24V DC equipment. E-bike, scooters, etc.
The default product is sent within 72 hours and the customized product is sent within the delivery period.
Shipping reference time,
Seller's Shipping Method :The seller uses different logistics methods according to different regions. DDU or DDP. 15-60 working days. Air or Train.
UPS:7-25 working days, DDP,Air transport
FedEx:7-25 working days ,DDP,Air transport
1 battery pack
Battery is a dangerous product. Before purchasing, please make sure that you understand the relevant knowledge of the lithium battery, and you can safely complete the installation of the battery pack or have a professional person assist in the installation. Improper operation may cause safety accidents, such as fire, explosion or equipment damage etc.. Please take all necessary precautions when using the battery.
*The default price does not include duty and tax,Except for special instructions.
* The weight of postal packages is limited to 2 kg. If you buy multiple products and the total weight exceeds 2 kg, it will be sent in multiple packages
* The weight and size data are obtained by manual measurement and may be subject to deviation.
* The performance parameter data comes from the KLUOSI laboratory. The actual test results will be affected by the test conditions (such as temperature, wire loss, test equipment accuracy, test parameters, etc.). Please perform multiple tests and take the average of the results to reduce the deviation.
The temperature is 25 degrees Celsius, and the deviation between the pure resistance discharge test results within the performance parameters and the description data is within 10%.
Model Number : KLS29410AD
